Universal Cargo Block with Bushed Single Sheave with Swivel Oval Eye
Sheave Size: 3"/76mm
SWL: 0.5 Tonne
Wire Dia: 8mm

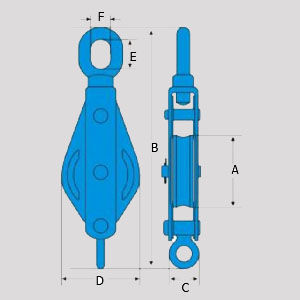

Dimensions:
- B: 295mm
- C: 40mm
- D: 87mm
- E: 32mm
- F: 22mm
Weight: 1.65Kg
Sheave Size: 4"/102mm
SWL: 1 Tonne
Wire Dia: 10mm
Dimensions:
- B: 338mm
- C: 50mm
- D: 112mm
- E: 42mm
- F: 27mm
Weight: 3.01Kg
Sheave Size: 5"/127mm
SWL: 1 Tonne
Wire Dia: 13mm
Dimensions:
B: 386mm
C: 50mm
D: 140mm
E: 44mm
F: 31mm
Weight: 4.40Kg
Sheave Size: 6"/152mm
SWL: 2 Tonne
Wire Dia: 16mm
Dimensions:
- B: 455mm
- C: 60mm
- D: 168mm
- E: 53mm
- F: 37mm
Weight: 8.2Kg
Sheave Size: 7"/178mm
SWL: 3 Tonne
Wire Dia: 19mm
Dimensions:
- B: 518mm
- C: 70mm
- D: 190mm
- E: 68mm
- F: 42mm
Weight: 11.5Kg
Sheave Size: 8"/203mm
SWL: 4 Tonne
Wire Dia: 22mm
Dimensions:
- B: 602mm
- C: 78mm
- D: 205mm
- E: 89mm
- F: 52mm
Weight: 17.5mm
Sheave Size: 10"/252mm
SWL: 5 Tonne
Wire Dia: 25mm
Dimensions:
- B: 753mm
- C: 82mm
- D: 270mm
- E: 90mm
- F: 54mm
Weight: 25Kg
Sheave Size: 12"/305mm
SWL: 6 Tonne
Wire Dia: 25mm
Dimensions:
B: 890mm
C: 106mm
D: 330mm
E: 111mm
F: 66mm
Weight: 35Kg
